2000 – 2020P; 5DER Files (Nickels)
2000P-5DER-001T 060º
DESCRIPTION: Light trail lines are seen from the right side of the dome on Monticello, the FIV of FIVE and the T of MONTICELLO. The offset direction is 060º.

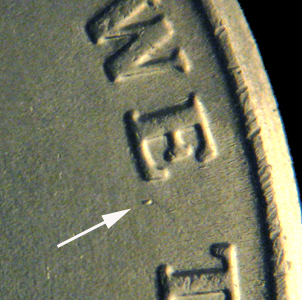

DIE MARKERS: Stage “B “, obverse is MDS – a small die gouge is seen under the word IN.
Reverse is MDS – a die gouge is seen under the E of EPU.
NOTE: Both the obverse and reverse die have been heavily clashed at this point in time.
NOTE: This die was found by David Strzalkowski.
2000P-5DER-002T 140°
DESCRIPTION: Trail lines are seen from the bottom right corners of the LLO of MONTICELLO and the N of CENTS. This is a VLDS die and more trail lines maybe present on earlier die states. The offset direction is 140°.
DIE MARKERS: Stage “D “, obverse is VLDS – die deterioration flow lines are present with the strongest centered near the date.
Reverse is VLDS – die deterioration flow lines are present with the strongest centered above E . PLURIBUS.
2005P(OIV)-5DER-001T 190°
DESCRIPTION: Trail lines are seen from the word PLURIBUS. The offset direction is 190°.
DIE MARKERS: Stage “C“, obverse is LDS – die chips are seen in the E and T of LIBERTY.
Reverse is LDS – a small die gouge is seen above the left branch of the tree. A die crack is seen above the 8 digit in the date 1805. A die crack is seen in the upper bar of the F in FIVE.
NOTE: This die was found by Tanaka Davis.
2005P-5DER-001T 170°
DESCRIPTION: Light trails from underneath the Bison with an offset direction of 170 degrees on this nickel.
NOTE: Pictures and information courtesy of Ken Potter.
DIE MARKERS: Stage “B”, obverse is MDS – none noted
Reverse is MDS – die scratches below the Bison’s chest.
2010P-5DER-001T 030°
DESCRIPTION: Trail lines are seen from the letters LUR and I of PLURIBUS. The offset direction is 030°
DIE MARKERS: Stage “B “, obverse is MDS – die scratches are seen above the LIB of LIBERTY.

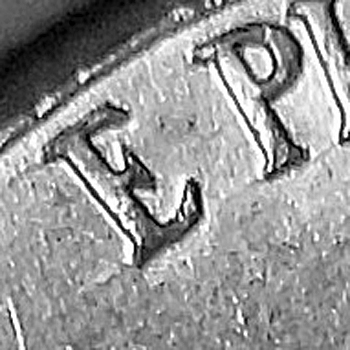

Reverse is MDS – a die gouge is seen above the E of EPU.
NOTE: This die was found by Tanaka Davis
2011P-5DER-001T 300°
DESCRIPTION: Trail lines can be seen on the LU of PLURIBUS. The offset direction is 300º.
DIE MARKERS: Stage “C“, obverse is LDS – a small die dot can be seen to the right of the base of the first 1 digit in the date. A small die gouge is sen under the U of TRUST.
Reverse is LDS – a small die dot is seen in the field to the left and under the E in the motto EPU. A die gouge is seen under the C of AMERICA.
NOTE: This die was found by Tanaka (Mikee) Davis
2012P-5DER-001T 010°
DESCRIPTION: Strong trail lines are seen on most of the lower half of the design elements on the reverse die. The offset direction is 010°.
DIE MARKERS: Stage “B“, obverse is MDS – none noted.Reverse is MDS – none noted.
2012P-5DER-002T 330°

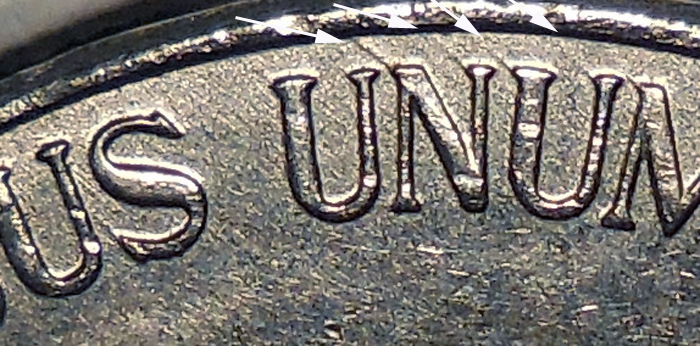

DESCRIPTION: Trail lines are seen from the letter U in PLURIBUS and the first U of UNUM. Also seen are trail lines from the left side of Monticello and the words FIVE CENTS. The offset direction is 330°.
DIE MARKERS: Stage “C“, obverse is LDS – none noted
Reverse is LDS – a small die gouge is seen in between the BU of PLURIBUS. Another small die gouge is seen above the IC of AMERICA.
NOTE: This die was found by Monika Stacy.
2012P-5DER-003T 270°
DESCRIPTION: Trail lines are seen from the left side of Monticello and the letters PLU of PLURIBUS. The offset direction is 270°.
DIE MARKERS: Stage “B“, obverse is MDS – none noted.
Reverse is MDS – a small die gouge is seen in between the letters US of PLURIBUS. Another small die gouge is seen to the left of one of the windows in Monticello.
NOTE: This die was found by Monika Stacy.
2012P-5DER-004T 160°

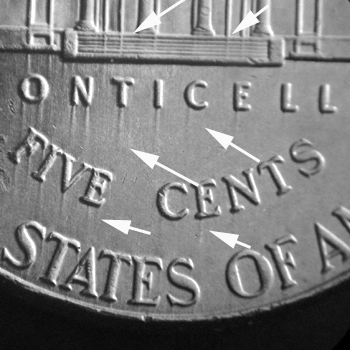

DESCRIPTION: Trail lines are seen from the words FIVE, CENTS, STATES and the NTI of MONTICELLO. The offset direction is 160º
DIE MARKERS: Stage “B“, obverse is MDS – none noted.
Reverse is MDS – a small die gouge is seen below the first A in AMERICA.
NOTE: This die was found by Tanaka (Mikee) Davis
2012P-5DER-005T 330°
DESCRIPTION: Trail lines are seen from the letters URIBU of PLURIBUS. The offset direction is 330º.
DIE MARKERS: Stage “C“, obverse is LDS – a small die dot is seen under the mintmark.
Reverse is LDS – a die crack is seen from the right base of Monticello to the rim. Another die crack is seen on the left edge of the building and in the field.
NOTE: This die was found by Tanaka (Mikee) Davis
2012P-5DER-006T 150°
DESCRIPTION: Trail lines are seen from the word CENT. The offset direction is 150º. This die is coupled with an obverse trail die, 2012P-5DEO-001T.
DIE MARKERS: Stage “C“, obverse is LDS – a small die break is seen on the top of the S of TRUST
Reverse is LDS – a die gouge is seen above the E in UNITED.
NOTE: This die was found by Tanaka (Mikee) Davis
2012P-5DER-007T 010°
DESCRIPTION: Trail lines are seen on top of the letters US of PLURIBUS, the word UNUM, the right roof top of Monticello and the right bay windows. The offset direction is 010º.
DIE MARKERS: Stage “B“, obverse is MDS – a die chip is seen on the L of LIBERTY.
Reverse is MDS – a small die gouge is seen to the left and below the O in OF.
NOTE: This die was found by Tanaka (Mikee) Davis.
2012P-5DER-008T 200°
DESCRIPTION: Trail lines are seen from the left baseline of the Monticello building, the MONT of MONTICELLO and the word FIVE. The offset direction is 200º.
DIE MARKERS: Stage “B“, obverse is MDS – a small die dot is seen to the left of the I of the word IN.
Reverse is MDS – a small die gouge is seen on top of the S in PLURIBUS.
NOTE: This die was found by Tanaka (Mikee) Davis.
.
2012P-5DER-009WST 180°
DESCRIPTION: Trails are seen through the steps on the Monticello building and on the base of the left side window. The offset direction is 180°.
DIE MARKERS: Stage “A“, obverse is EMDS – none noted
Reverse is EMDS – none noted
NOTE: This die was found by George dePozsgay.
.
2012P-5DER-010T 340°
Description: Trail lines are seen from the left side of the Monticello building, the MONTI of MONTICELLO, the FI of FIVE and the word UNUM. The offset direction is 340°.
Die Markers: Obverse is MDS – none noted.
Reverse is MDS – none noted.
Note: This die was found by Jim Kames
.
2013P-5DER-001T 300°
DESCRIPTION: Trail lines are seen from the bottom letters NITED of UNITED. The offset direction is 300º.
DIE MARKERS: Stage “B“, obverse is MDS – a small group of die gouges is seen below the word WE
Reverse is MDS – a die gouge is seen to the bottom right of the first O in MONTICELLO.
NOTE: This die was found by Karen Johnson.
2013P-5DER-002WSTA 190°
Stage “B”
Description: Trail lines are seen from bottom of the windows and columns in the Monticello building. These lines are seen transversing the stairs to the entrance of that building giving the steps a “wavy” appearance. Also seen are trail lines from the words “MONTICELLO, FIVE CENTS” and “UNITED SATES OF AMERICA”. This is the first wavy step reported for the Jefferson nickel. The offset direction is 190°.
Stage “A”
Stage “B”
Die Markers: Stage “A” Obverse is MDS – none noted.
Reverse is MDS – none noted.

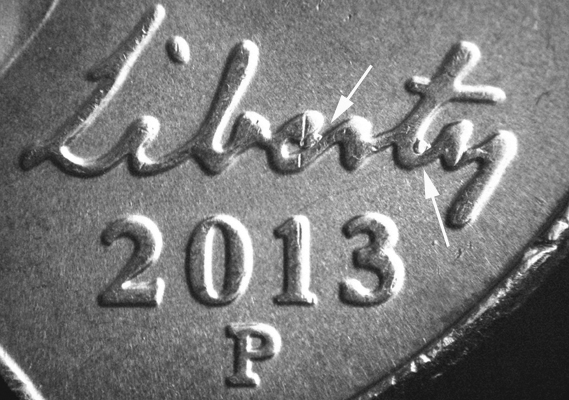

Stage “B” Obverse is LDS – die chips are seen in the letters E and T of LIBERTY.

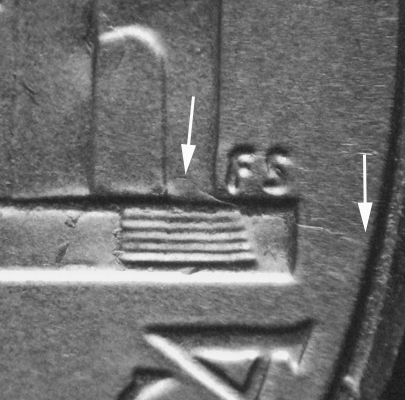

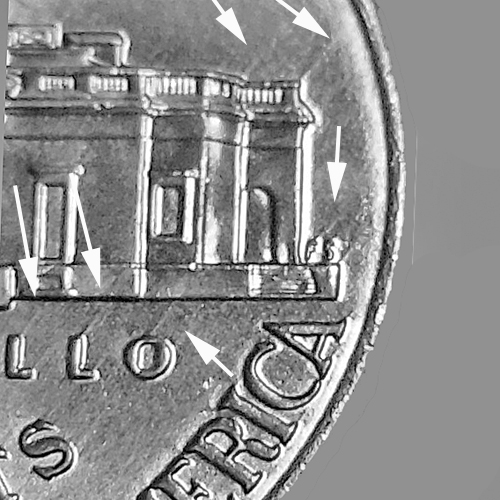

Reverse is LDS -a die chip with a die crack is seen on the right upper corner of the Monticello building. Another die crack is seen under the designer’s initials to the rim .
NOTE: This trail die (Stage “B”) is considered a major trail die and was found by George dePozsgay. Stage “A” was found by Jim Karnes.
2013P-5DER-003T 240°
Description – Trail lines are seen from all the letters below the Monticello building. The offset direction is 240°.
Die Markers: Obverse is LDS – a small die gouge is seen below the E of WE.

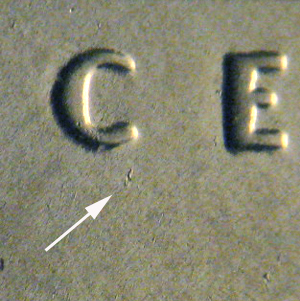

Reverse is LDS – a small die gouge is seen below the UR of PLURIBUS. Another small die gouge is seen under the C of MONTICELLO.
NOTE: This die was found by Ron Traino.
2013P-5DER-004T 120°
Description: Trail lines are seen from the letters under the Monticello building, with the strongest trail lines being on the right side. The offset direction is 120°.
Die Makers: Obverse is MDS – a small die gouge is seen to the left of the first T in TRUST.
Reverse is MDS – none noted.
NOTE: This die was found by Ron Traino.
2013P-5DER-005WSTA 180°
STAGE “B”

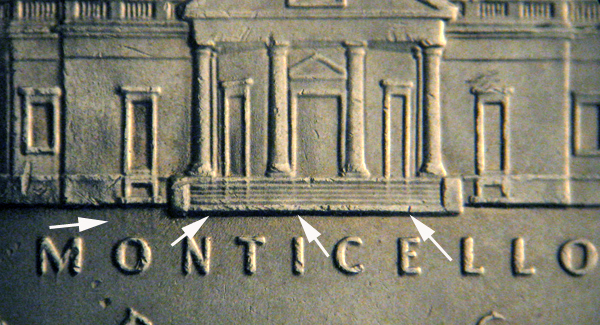

Description: Strong trail lines are seen on all devices on the bottom half of the reverse die on this 2013P Jefferson nickel. The strength of the trail lines seems to increase from right to left. The trail lines through the stairs of Monticello have distorted their shape giving an appearance of waves, hence the term wavy steps. The offset direction for these trail lines is 180°. This is definitely a major trail die.
Stage “A”
Stage “B”

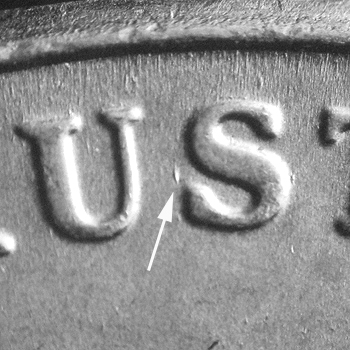

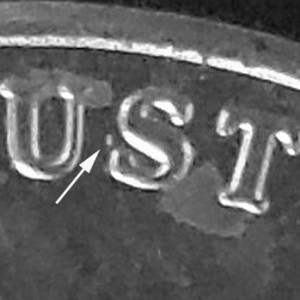

Die Markers: Stage “A” Obverse is MDS – a small die gouge is seen next to the S in TRUST. There is an absence of flow lines seen in this stage.
Reverse is MDS – a small die dent is seen above the last U in PLURIBUS.
Stage “B” Obverse is LDS – a small die gouge is seen next to the S in TRUST.
Reverse is LDS – a small die dent is seen above the last U in PLURIBUS.
Note: This die (Stage “B”) was found by G. Daniels. Stage “A” was found by Jim Karnes.
.
2013P-5DER-006T 010°

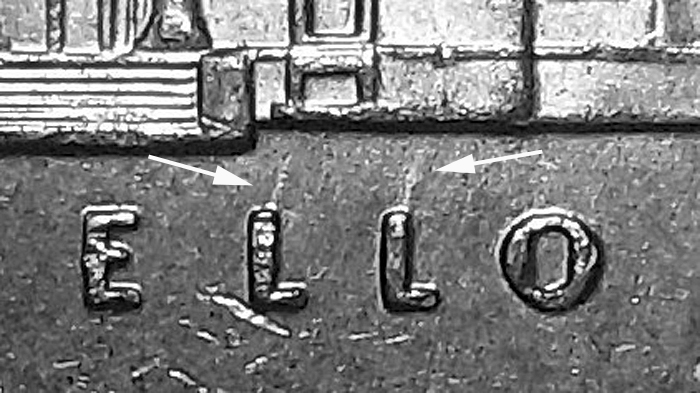

Description: Trail lines are seen from the top of the two Ls in MONTICELLO. The offset direction is 010°
DIE MARKERS: Stage “B “, obverse is MDS – none noted.
Reverse is MDS – none noted
NOTE: This die was found by Jim Karnes.
2013P-5DER-007T 240°
Description: Most of the design elements on the reverse have trail lines with an offset direction of 240°.
Die Markers: Obverse is MDS – none noted.
Reverse is MDS – none noted.
Note: This die was found by Jim Karnes.
2013P-5DER-008T 050°

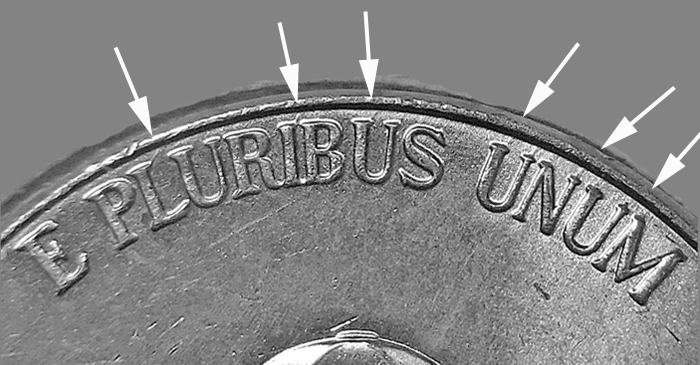

Description: Trail lines are seen from the words PLURIBUS UNUM, the right side of Monticello and the LLO of the word Monticello.
Die Markers: Obverse is MDS – none noted.
Reverse is MDS – none noted.
Note: This die was found by James Karnes.
.2013P-5DER-002T 240°
2014P-5DER-001T 110°

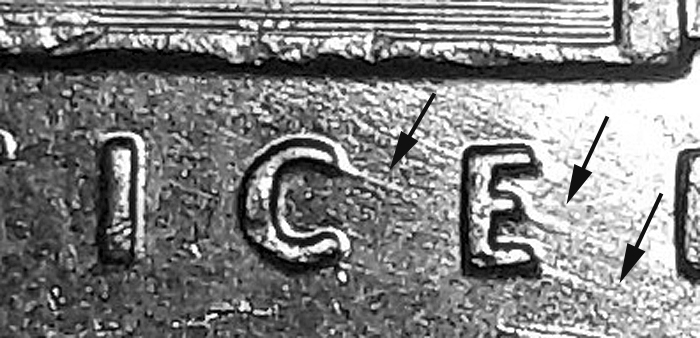

Description: Trail lines are seen from the CE in MONTICELLO. The offset direction is 110°
DIE MARKERS: Stage “B “, obverse is MDS – none noted.
Reverse is MDS – none noted
NOTE: This die was found by Jim Karnes.
2015P-5DER-001T 060°

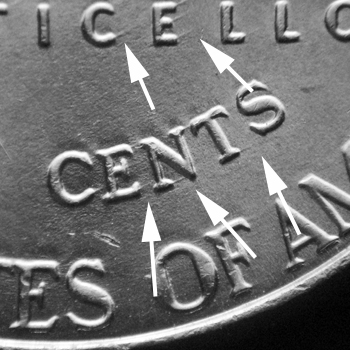

Description: Trail lines are seen from the CEL of MONTICELLO and the ENT of CENTS.. The offset direction is 060°.
Die Markers: Obverse is MDS – none noted.

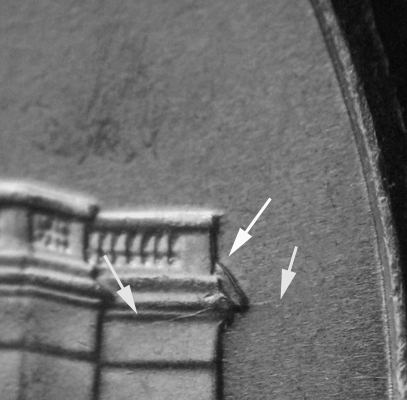

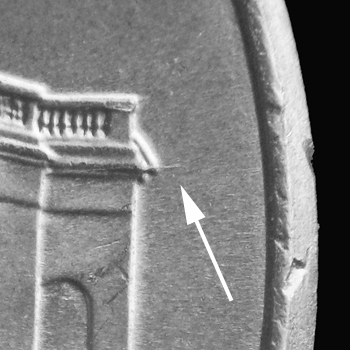

Reverse is MDS – a die crack that enters the field from the right eave of the Monticello building.
Note: This die was found by Michael Taylor.
